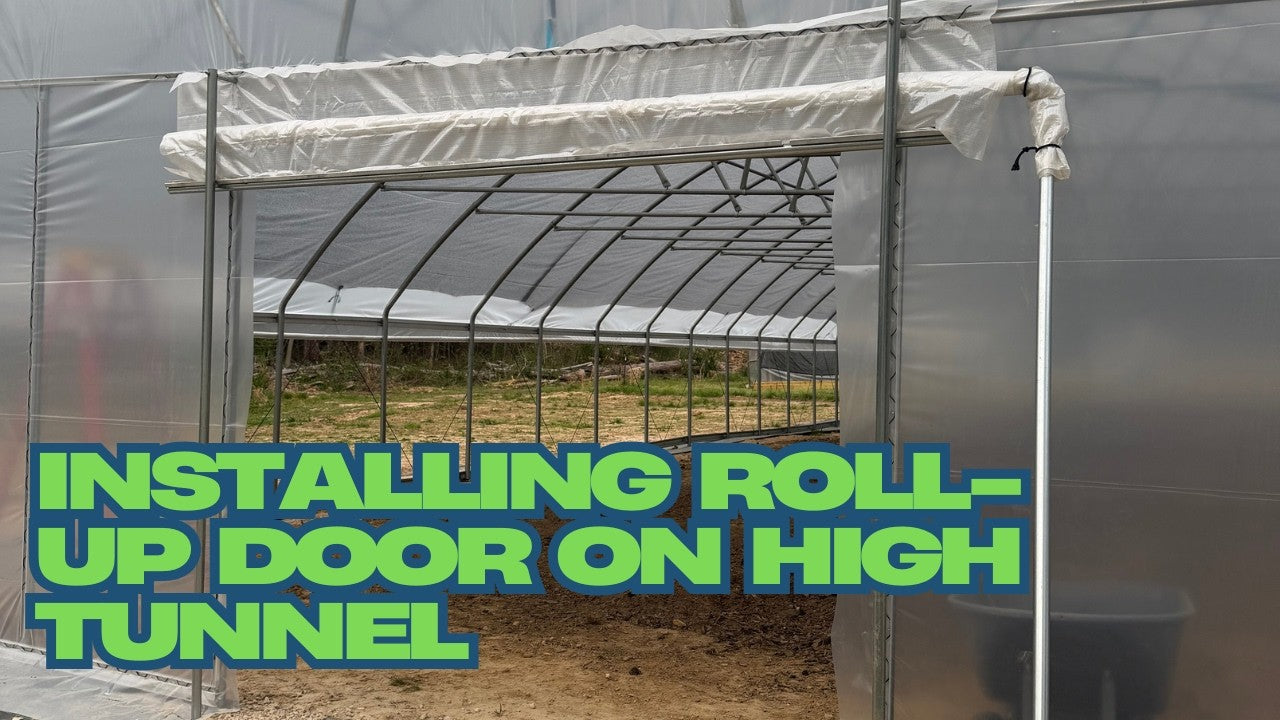

How to Install a high tunnel roll-up door NRCS Style Setup for Better Ventilation

A good high tunnel roll-up door NRCS setup gives you fast ventilation, better summer airflow, and a clean way to open up the end wall without fighting a heavy framed door. This style uses reinforced poly, wiggle wire channel, a center roll bar, and a manual handle system so the whole panel rolls up evenly and stays put when it is open.

If you are building out a tunnel for market gardening, backyard production, or an EQIP-style tunnel layout, this approach keeps things simple. It also leaves you some flexibility for winter sealing and for adding a regular man door beside the larger opening if that fits your layout better.

What this roll-up door system is made to do

This door system is built around a reinforced 11 mil woven poly panel instead of lighter film. That matters because a roll-up door gets handled over and over again. Repeated opening and closing will expose weak material pretty quickly, so the heavier woven panel holds up better for that kind of use.

The example shown here is an 8 foot by 8 foot door, though the same idea can be built up to 10 feet wide. The panel is captured with wiggle wire and channel in a few key places so it rolls correctly and stays controlled in the wind.

• Top channel: holds the panel at the head of the opening.
• Middle channel: creates the roll-up bar line.
• Bottom channel: adds weight so the panel hangs and seals better.
• Side channels: keep the edges down and help the door sit neatly in the opening.

The bottom edge is especially helpful because that extra weight keeps the plastic from flapping as much. If nasty weather is coming in, you can always add more weight such as a sandbag to hold it down tighter.

One nice thing about this high tunnel roll-up door NRCS approach is that it does not lock you into one season of use. In colder months, the sides can be secured tighter with wiggle wire for a better seal. If you want everyday walk-through access without rolling the whole panel, you can also add a smaller side door or even a storm door between uprights.

Why the center roll bar makes the door work better

The middle of the panel acts as the roll-up point. A joint is installed there to create the main roll bar, and that bar turns both sections of the panel at the same time.

That is the trick that makes this design open faster and more evenly. Instead of trying to roll one large sheet from only one edge, the center bar splits the work so both halves wrap up together. That reduces strain on the material and keeps the movement more balanced.

The joint also gives you a place to attach the crank handle assembly. Once that is in, you can turn the bar and lift the full opening much more easily.

How the opening is prepared before the handle goes on

Before any cranking starts, the plastic needs to be secured in the right places. The top is already held with single channel across the opening. The middle and bottom lines are then established with wiggle wire and channel so the panel has structure.

At this stage, the sides are still important. Even though this is a roll-up door, the side channels help keep the panel tracked and contained. That gives you a cleaner close and a better-looking end wall.

For a high tunnel roll-up door NRCS installation, this is the point where accuracy matters more than speed. If the panel is not aligned well now, the door will show it later when you start rolling it up.

Installing the knuckle joint and handle

The first hardware step is attaching the knuckle joint to the roll bar using self-drilling screws. Using two screws adds a margin of safety and keeps that connection from twisting loose over time.

After that, the long handle is added. The handle should be left a little long at first and then trimmed so it sits along the ground where you want it. That length matters because the handle is doing two jobs:

• It gives you leverage to roll the door up.
• It helps keep the assembly from turning inward once the door is in position.

Once the handle is attached, you can test the motion by twisting it. If everything is lined up, both sections of the panel should begin rolling together.

What to expect on the first test roll

The first test is rarely perfect, and that is normal. As the door starts to roll, one side may come up a little faster or sit a little lower than the other.

That does not usually mean anything is wrong with the system. It just means the wiggle wire position may need a small adjustment. Shifting the plastic slightly up or down on one side will help the roll line even out.

This part is a little hands-on. You are looking for the point where both sides reach the top at about the same time and the panel closes back down cleanly.

So if one side is lagging or pulling high, pull the wiggle wire, move the panel a bit, and reinstall it. A small change can make a big difference.

How the door locks in the open position

When the panel is rolled up and you want it open, the handle is walked toward the center of the tunnel and dropped to the ground. That creates a simple manual lock position.

The geometry of the handle helps keep the assembly from rotating back on its own. In other words, once it is set down correctly, the door is less likely to unwind and fall.

That said, open doors can still catch wind, which is why the brace and guide components matter so much.

Adding the ground post and guide uprights

Once the roll action is working, the next step is adding the guide post assembly. A ground post is set into the ground, roughly a foot and a half deep. The exact embedment can vary with conditions, but the goal is a stable upright that can resist movement when the door is opened and closed.

The remaining height is cut off level with the top of the truss. From there, the guide hardware is attached.

The assembly includes:

• A guide upright
• A spacer
• A long bolt
• Lock washer or split washer
• Nut
• An end rail clamp connection point

The spacer sits between the outside of the upright and the guide bar. The bolt passes through the clamp and spacer, then gets tightened with hardware on both sides so the whole connection stays rigid.

This is a major part of making a high tunnel roll-up door NRCS setup last. Without a properly aligned guide, the bar can shift, bind, or wear unevenly.

Connecting the bolt, spacer, and clamp assembly

The long bolt is pushed through the end rail clamp from the inside, then lined up with the guide upright and spacer on the outside. Once the holes line up, the spacer is slid into place and the nut and washer are tightened down.

The same thing is repeated on the opposite side if needed for the full assembly.

The reason for this hardware stack is simple. It keeps the guide bar from sliding around and helps hold the door in a fixed path as it rolls. That protects the plastic and makes the open and close cycle much more predictable.

Use a protective sleeve where metal meets plastic

Anywhere a joint or hardware connection sits close to the plastic, it is smart to add a protective sleeve or plastic sock. That extra barrier helps keep the hardware from rubbing a hole in the panel.

This is one of those little details that is easy to skip and expensive to ignore. Reinforced poly is tough, but metal edges and repeated movement can still wear through it over time.

Ideally, that protective sleeve goes on before the final assembly step. If you forget it and notice later, it is still worth backing up and adding it.

Fine-tuning the door so it rolls evenly

After the guides are installed, roll the door up again and watch the movement closely. If the bottom edge rises unevenly or the panel wrinkles harder on one side, make another small adjustment to the wiggle wire position.

Common signs you need to tune it:

• One side reaches the top before the other
• The bottom bar sits crooked when closed
• The panel bunches up more on one side
• The handle feels like it is fighting the roll instead of helping it

Most of the time, the fix is not dramatic. You just lower or raise the plastic slightly where it is captured in channel, then test again.

That is really the main lesson of this kind of high tunnel roll-up door NRCS install. The system is straightforward, but the final fit comes from small adjustments.

Winter sealing options and side door add-ons

During the growing season, the big advantage here is airflow. You can open the whole end quickly and move a lot of heat out of the tunnel. But when winter comes, you may want the opposite.

That is why the side channels are useful. If you want a tighter seal during cold months, you can secure the panel more fully with wiggle wire and channel where needed.

You can also pair the large roll-up panel with a smaller everyday entry door off to one side. That could be a purpose-built greenhouse door or a standard storm door installed between uprights. It gives you walk-in access without opening the full tunnel end.

Why this setup works well for airflow and access

A full end-wall roll-up panel solves several problems at once:

• Ventilation: hot air escapes fast in warm weather.
• Access: equipment and carts can move through more easily.
• Simplicity: fewer framed moving parts than a large rigid door.
• Flexibility: you can still tighten things up for winter.

For growers planning a high tunnel roll-up door NRCS project, that combination makes a lot of sense. You get a practical manual system that is easy to service, easy to adjust, and well suited to daily farm use.

Helpful installation notes before you start

• Leave your handle a little long at first and trim it after you test the open position.
• Use reinforced poly intended for repeated rolling.
• Do not assume your first alignment is final. Expect some tweaking.
• Set the ground post solidly and cut it to match the truss height.
• Use the protective sleeve wherever hardware could rub the panel.
• Test the door open and closed before calling the job finished.

FAQ

A well-built high tunnel roll-up door NRCS system is not complicated, but it does reward careful setup. Get the channels placed right, protect the plastic where metal touches it, set the guide posts solidly, and take the time to fine-tune the roll. Once that is done, you end up with an end wall that opens wide, seals reasonably well, and works with you instead of against you.
